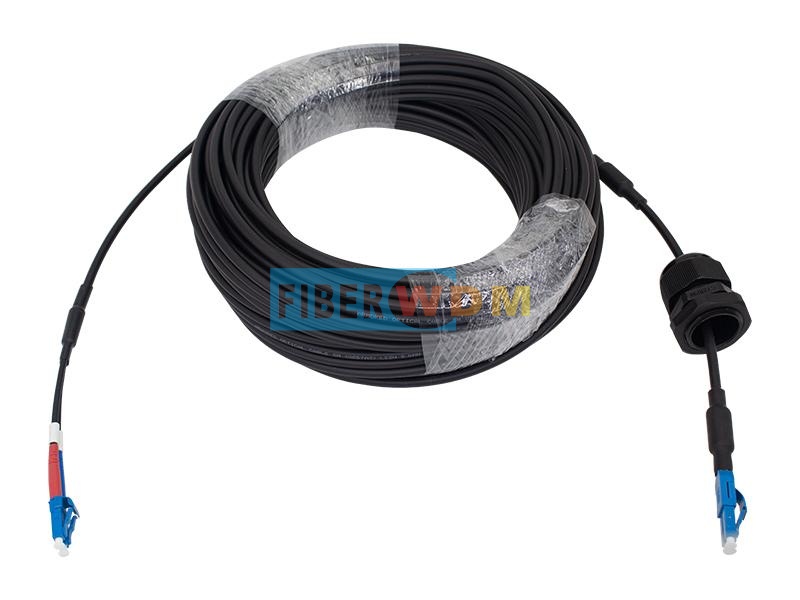

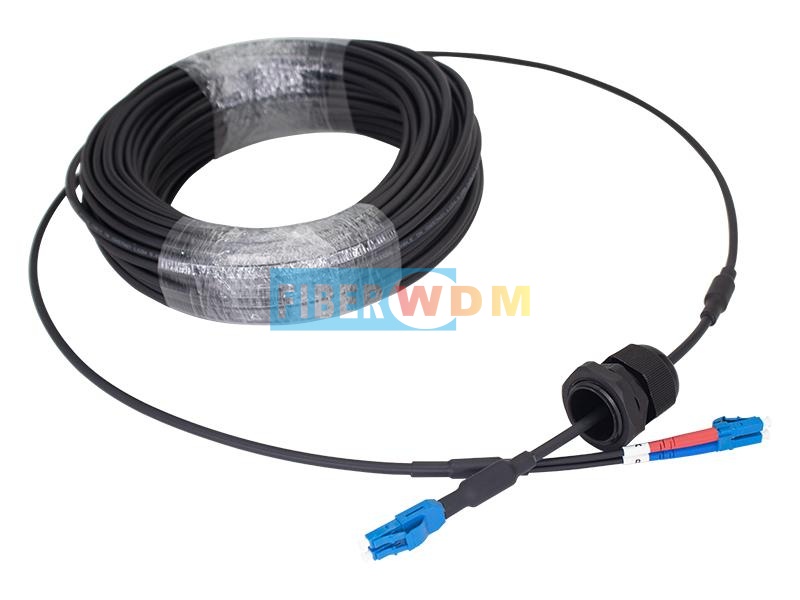

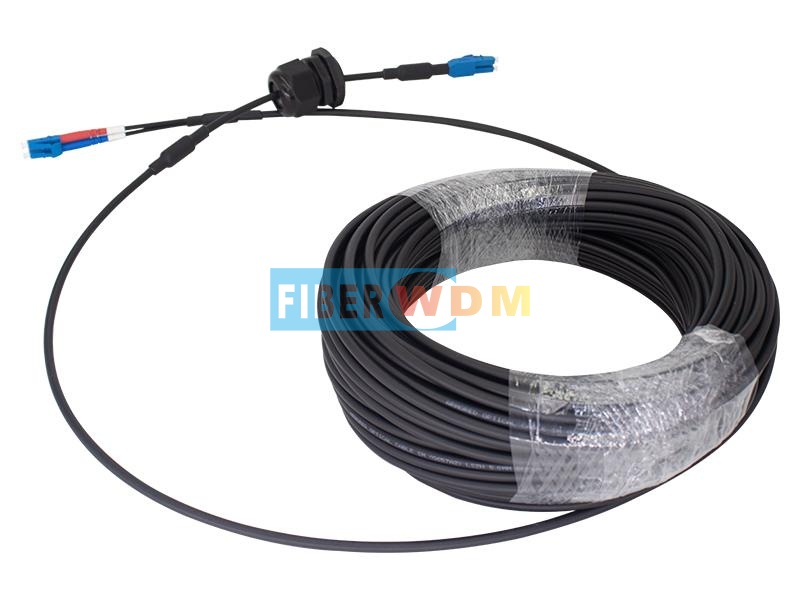

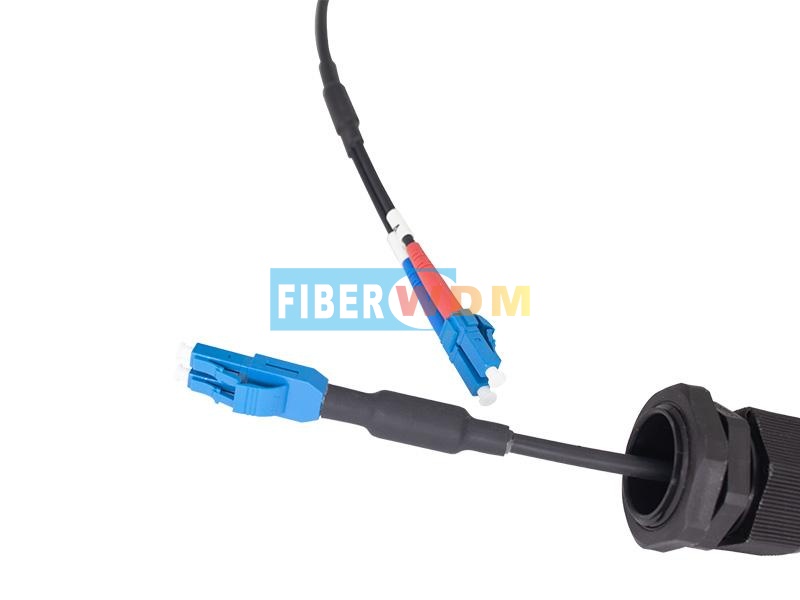

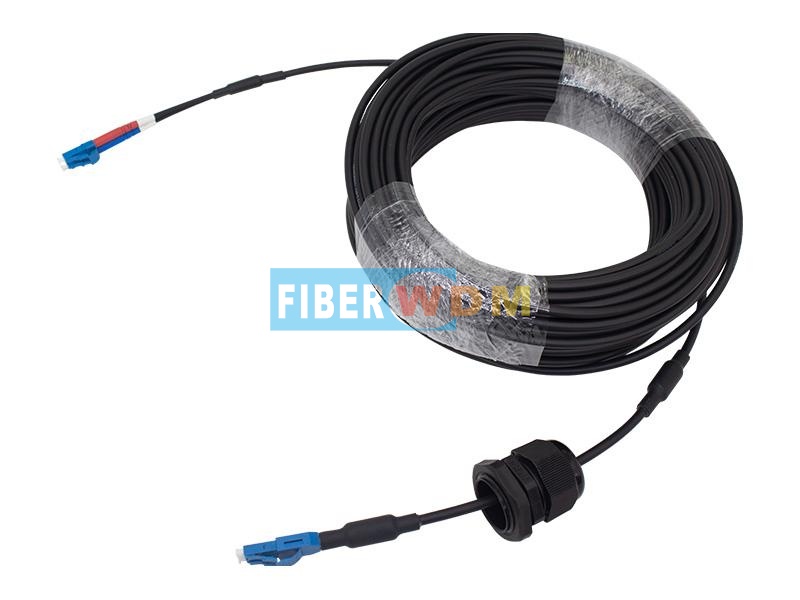

FTTA DLC-DLC-UPC SM 2C 5.0 ARMORED Cable

FTTA DLC-DLC-UPC SM 2C 5.0 ARMORED Cable

SM/G657A2 2 Cores, Black LSZH,φ5.0mm，Armored，breakout φ2.0mm

現在查詢下載

類別

熱門產品

產品詳細信息

DLC/UPC-DLC/UPC-SM-2C-LSZH-5.0mm-ARMORED

Product Description

DLC/PC-DLC/PC-SM(G657A2)-DX-5.0mm-LSZH-XXM
Main cable armord,2.0mm branch cable, One side Non-armored branch with M28 plastic Gland And stoppers. The other side (side B) armorde branch with mesh Kevlar to increase tensile strength.

Product Structure

No.	Element	Qty/Unit	Requirements
1	Connector	2 Pcs	LC/UPC Dulpex SM 2.0mm Connector
2	Break Out Cable (A)	2 Pcs	OD 2.0mm Black simplex cable tube
3	Hot shrink sleeve	1 Pcs	adhensive hot shrink sleeve
4	Cable	1Pcs	OD 5.0mm LSZH Black G675A2 Duplex Armored cable
5	Hot shrink sleeve	1 Pcs	adhensive hot shrink sleeve
6	Break Out Cable (B)	2Pcs	OD 2.0mm Black simplex cable tube
7	Connector	2Pcs	LC/UPC Dulpex SM 2.0mm Connector
8	Identifier	2 Pcs	A/B White Identifier
9	Identifier	2 Pcs	A/B White Identifier

Fiber Chart crossed
From side A	From side B
A	B
B	A

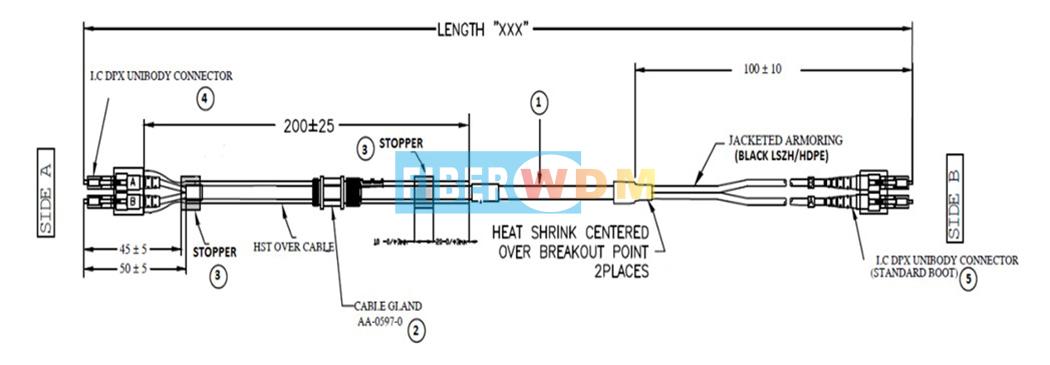

Parts list

#	Item Description	QTY
1	Flexible armored cable	1
2	Gland (Ceragon p/n AA-0597-0)	1
3	Stopper. OD- 11.5±0.3mm	2
4	Micro LC Duplex Unibody connector - gland side	1
5	Standard LC Duplex Unibody connector - non-gland side	1

Cable Index

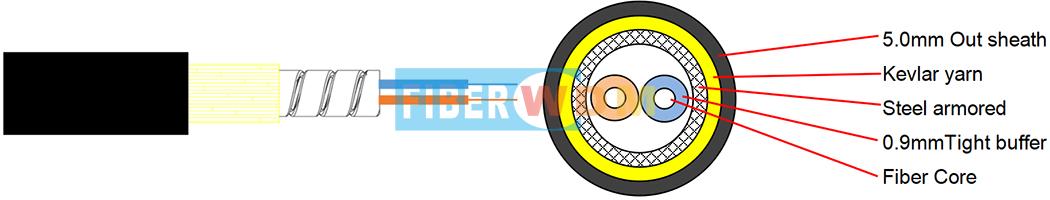

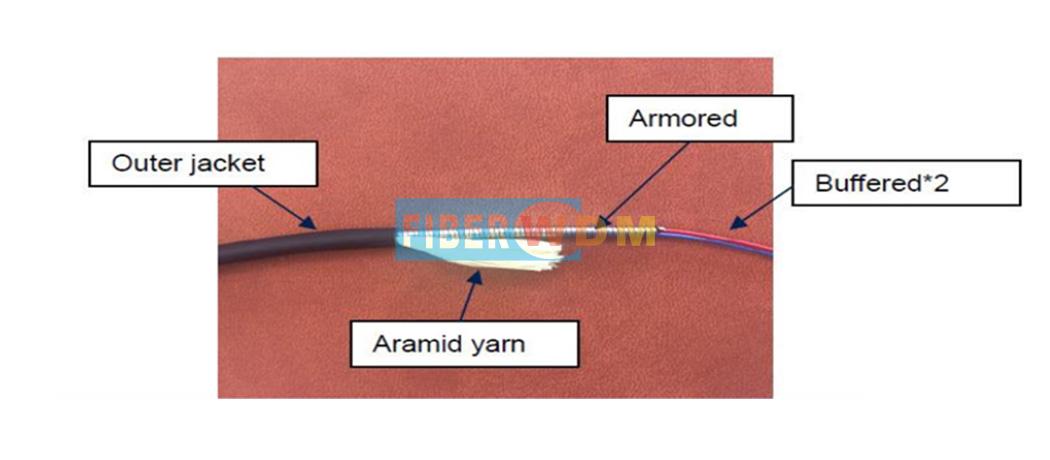

Cable structure drawing

Cable Characteristic

Technical Parameters:
Out Diameter	Inner Diameter	Weight	Minimum allowable Tensile Strength (N)		minimum allowable Crush Load （N/100mm)		Minimum Bending Radius (MM)		Storage temperature
(MM)	(MM)	(KG)/KM	short term	long term	short term	long term	short term	long term	（℃）
5.0±0.2	0.9	40.00	1200	500	2000	1000	20D	10D	-20+75

G657A2 Fiber Characteristic

Item	Parameter
Fiber Type	9/125 um
Core Diameter	9 um
Core Non-Circularity	≤1.0 %
Cladding Diameter	125.0±0.7um
Cladding Non-Circularity	≤0.7 %
Coating Diameter	245±5 um
Coating-Cladding Concentricity Error	≤12.0um
Coating Non-Circularity	≤6.0um
Core-Cladding Concentricity Error	≤0.5um
Attenuation @1310nm	≤0.35dB/km
Attenuation @1550nm	≤0.21dB/km
PMD	≤0.1[ps／km]
Mode field diameter (MFD)@1310nm	8.4-9.2um
Mode field diameter (MFD)@1550nm	9.3-10.3um
Effective group index of refraction (Neff)@1310nm	1.466
Effective group index of refraction (Neff)@1550nm	1.467
Point discontinuities@1310nm	≤0.5db
Point discontinuities@1550nm	≤0.5db
Macro-bend induced attenuation
10 turns around a mandrel of 15 mm radius@1550nm	≤0.03db
1 turns around a mandrel of 10mm radius@1550nm	≤0.1db
1 turns around a mandrel of7.5 mm radius@1550nm	≤0.2db

Optical Characteristic

Item	Parameter
Connector Type	LC/UPC-LC/UPC
Insertion Loss	≤0.2dB
Return Loss	≤50dB
Fiber Mode	SM/G657A2
Operating Wave Length	1310nm, 1550nm
Test Wave Length	1310nm, 1550nm
Repeatably	≤0.1
Interchangeability	≤0.2dB
Durability	≤0.2dB
Fiber Length	1m, 2m…any length optional.
Tolerance	+100nm / -0mm @ L=1~10m
	+200nm / -0mm @ L=10~50m
	+500nm / -0mm @ L＞50m
Operating Temperature	-40℃~ +80℃
Storage Temperature	-40℃~ +60℃
Installation Temperature	-20℃~ +60℃

Mechanical Specifications

Physical Characteristic

Item	Parameter
Cable Core	2
Diameter	5.0mm Armored (outside with LSZH)
	0.9mm tight buffer
Weight	40g/M
Tensile Strength	1000N (short term)
	500N (long term)
Crush Load	2000N/100mm (short term)
	1000N/100mm (long term)
Bending Radius	20D mm（Static）
	10D mm（Dynamic）

相關的標簽 :

FTTA Cable
LC to LC
DLC Cale
Armored cable
Duplex cable
LC/UPC Cable

想知道這個產品嗎？

發送信息

留言

如果您對我們的產品感興趣并想了解更多詳細信息，請?jiān)诖颂幜粞?，我們將盡快答復您。

主題 : FTTA DLC-DLC-UPC SM 2C 5.0 ARMORED Cable
您的電話
您的郵箱 *
寫你的問題 :

相關產品

LC/SC/FC/ST光纖跳線

High dense space Ceramic ferrules connector Low insertion loss High return loss Excellent mechanical endurance High credibility and stability

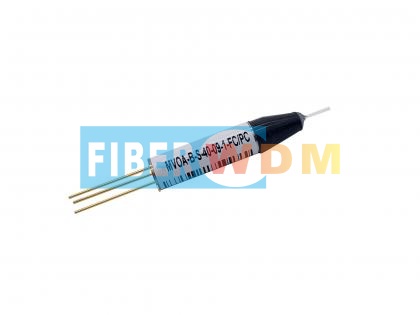

MEMS VOA 可調衰減器

Product Features Low insertion loss Low polarization dependent Compact size Available in both normally open and normally closed states Excellent reliability Product Application Power Management Receiver protective Channel Balance Instrumentation

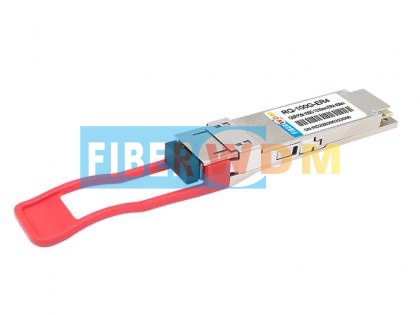

100Gb QSFP28 ER4 40Km 1310nm LC Optical Transceiver

100G QSFP28 ER4 optical transceiver module, support 100Gb/s and up to 40 km transmission on SM fiber, it works in high-speed IDC connection solutions, and so on. Features: 4 lanes MUX/DEMUX design Support 100GBASE-ER4 for line rate of 103.125Gbps. Integrated LAN WDM TOSA / ROSA for up to 40 km reach over SMF. Aggregate bandwidth of >100Gbps Duplex LC connectors Compliant withIEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module electrical standard ITU-T G.959.1-2012-02 standard· Single +3.3V power supply operating Built-in digital diagnostic functions Temperature range 0°C to 70°C RoHS Compliant Part Support FEC(Forward Error Correction)

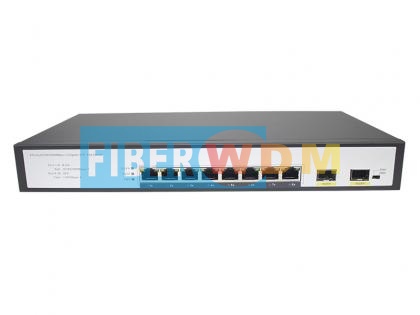

千兆2光8電PoE 交換機
