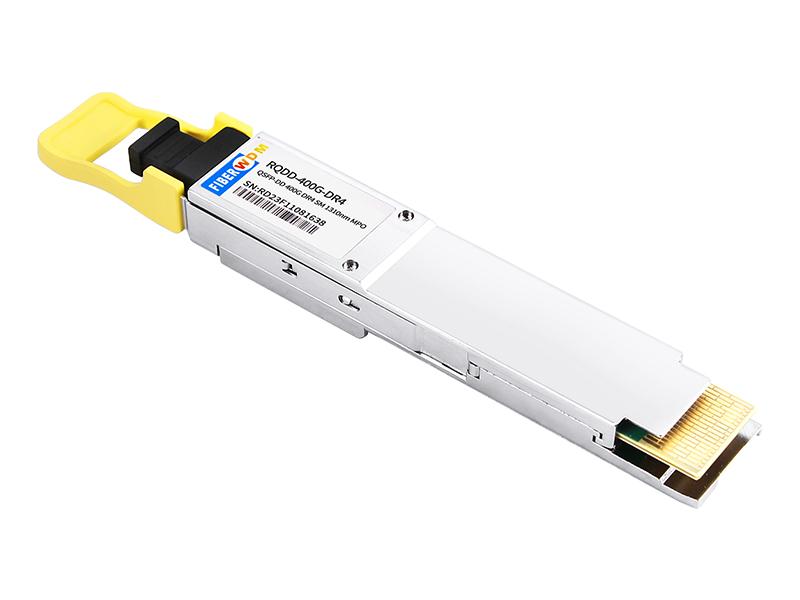

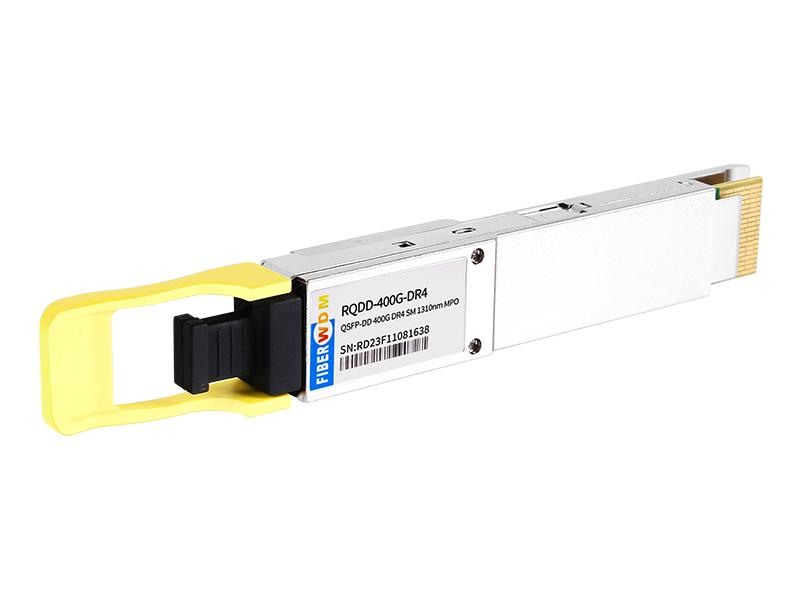

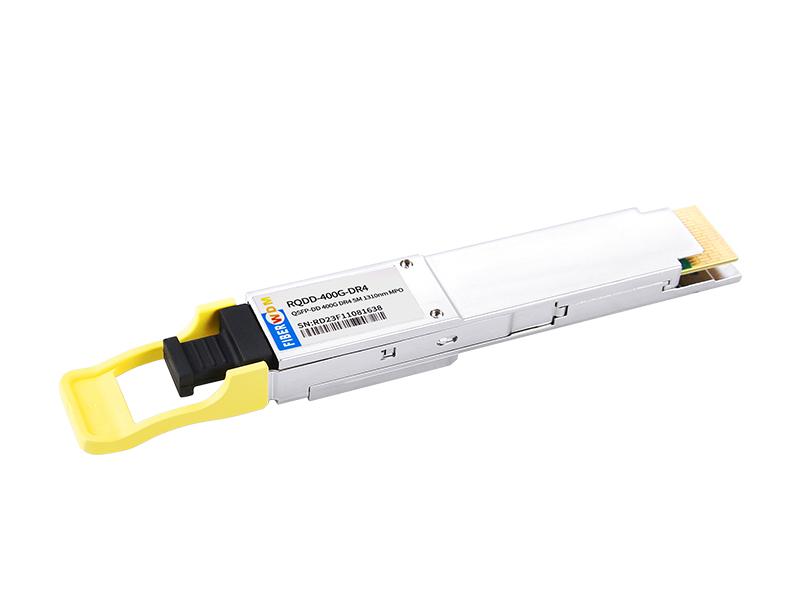

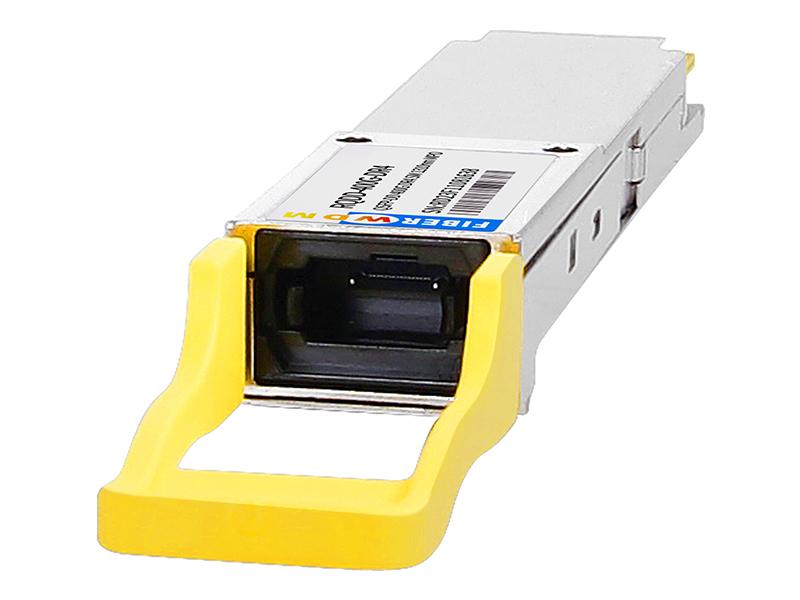

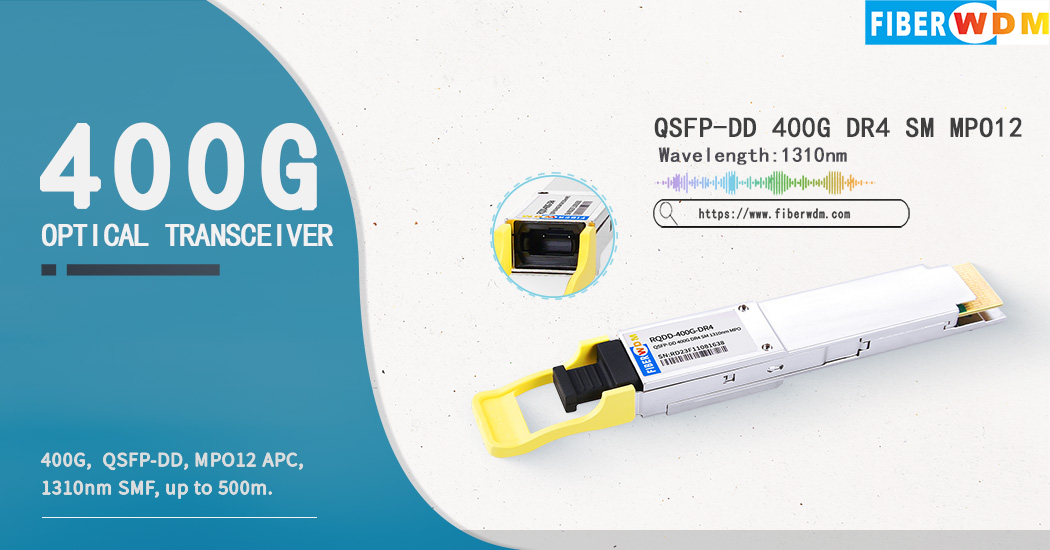

400G QSFP-DD DR4 SM MPO12 Optical Transceiver

Features

QSFP-DD Serial Optical Interface

8x50G PAM4 retimed 400GAUI-8 electrical interface
MPO-12 connector with 8° angled end-face
Up to 500m on SMF with FEC

QSFP-DD MSA Compliant

Hot Pluggable QSFP-DD form factor
Compliant with CMIS5.2

Support Protocol

IEE802.3.bs 400GBASE-DR4 Specification compliant

Low Power Consumption

Less than 10.5W in temperature range of 0 to 70℃

Applications

400Gb/s Ethernet
Data Center
InfiniBand interconnects

現在查詢下載

類別

熱門產品

產品詳細信息

400G OSFP DR4 Specification

400G, QSFP-DD, MPO12 APC,1310nm SMF, up to 500m.

400G QSFP-DD DR4

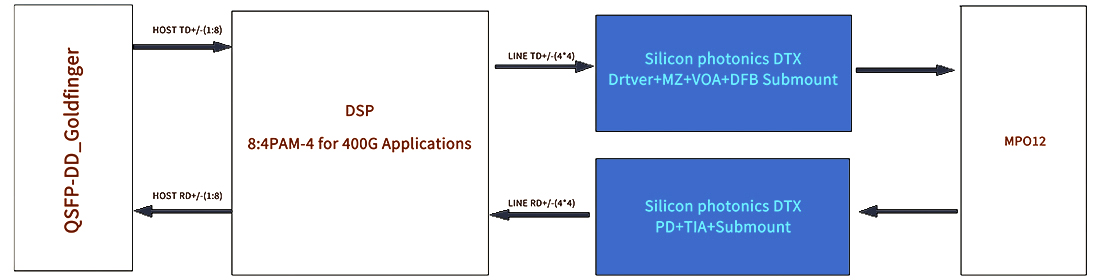

Functional Block Diagram

400G QSFP-DD DR4

General Description

RQDD-400G-DR4 is a Silicon Photonics 400G (4x100G) DR4 transceiver. RQDD-400G-DR4 is a fully integrated, 425 Gb/s optical transceiver for SMF links up to 500m. RQDD-400G-DR4 transmits data in compliance with the optical interface specification IEEE Std802.3-2018 Section 8 400GBASE-DR4. 400GBASE-DR4 specifies the use of 4-level pulse amplitude modulation (PAM4) at 53.125 Gbaud operating at four parallel channels with wavelength on the range of 1304.5-1317.5nm. The bit rate per lane is106.25 Gb/s, which produces an aggregate data rate of 425 Gb/s by means PSM to the transmit ports of the MPO-12 connector. The received optical lanes are paralleled from the receive MPO-12 connector ports to PIN-PD built in PIC (Photonic Integrated Circuit) to recover the PAM4 for interfacing with the electrical interface via with transimpedance amplifier (TIA) surfaced-mounted to PIC.

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit
Storage Temperature	Ts	-40	85	°C
Case Operating Temperature	Top	0	70
Storage Relative Humidity (non-condensation)	RH	-	85	%
Supply Voltage	Vcc	0	3.6	V
Receiver Damage Threshold, per Lane	PRdmg		5.0	dBm

Recommended Operating Conditions

Parameter	Symbol	Min	Max	Unit
Operating Case Temperature	TC	0	70	°C
Relative Humidity (non- condensation)	RH	5	85	%
Power Supply Voltage	Vcc	-3.135	3.465	V
Supply Current	Icc		3182	mA
Total Power Consumption	PC		10.5	W
Bit Rate	BR		425	Gbps

Transmitter Optical Interface

Parameter	Accuracy	Unit
Internally Measured Transceiver Temperature	+/-3	℃
Internally Measured Transceiver Supply Voltage	+/-3	%
Measured Tx Bias Current	+/-10	%
Measured Tx Output Power	+/-3	dB
Measured Rx Received Average Optical Power	+/-3	dB

Receiver Optical Interface

Parameter		Symbol	Min	Typical	Max	Unit
Data rate per lane		BR		53.125		GBd
Modulation format			PAM4
Center Wavelength		λ	1304.5	1311.0	1317.5	nm
Damage threshold		THD	5			dBm
Average receive power, each lane			-5.9		4.0	dBm
Average receive power, each lane			-5.9		4.0	dBm
Receiver reflectance		Rr			-26	dB
Receiver sensitivity, each lane1		SEN	Max(-3.9, SECQ-5.3)			dBm
Stressed receiver sensitivity, each lane		SRS			-1.9	dBm
Rx LOS	LOS Assert		-15		-7.9	dBm
	LOS De-assert				-7.5	dBm
	LOS Hysteresis		0.5			dB

Note:

1. Receiver sensitivity is informative and is defined for a transmitter with a value of SECQ. Measured with conformance test signal at TP3 for BER = 2.4E-4 Pre-FEC.

Module input characteristics

Parameter	Min	Typical	Max	Unit
Supply Voltage	3.135		3.465	V
Input Differential Impedance	90	100	110	Ω
Differential data input swing			880	mVpp
Differential data output swing			900	mVpp
Bit Error Rate			2.4E-4
Input Logic Level High	2		Vcc	V
Input Logic Level Low	0		0.8	V
Output Logic Level High	Vcc-0.5		Vcc	V
Output Logic Level Low	0		0.4	V

Digital Diagnostic Monitor Accuracy

The following characteristics are defined over recommended operating conditions.

Parameter	Accuracy	Unit
Internally Measured Transceiver Temperature	+/-3	℃
Internally Measured Transceiver Supply Voltage	+/-3	%
Measured Tx Bias Current	+/-10	%
Measured Tx Output Power	+/-3	dB
Measured Rx Received Average Optical Power	+/-3	dB

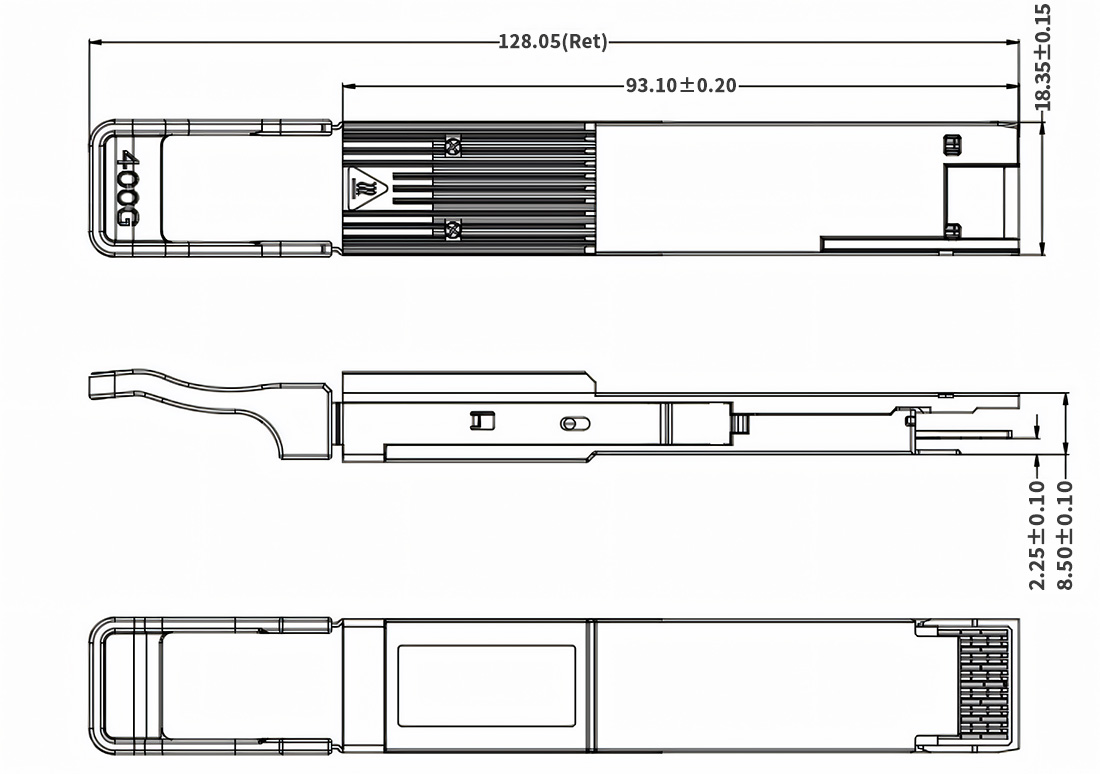

Package dimensions

400G QSFP-DD DR4

Ordering Information

Part Number	Temperature Range	Distance	Fiber Type	E/O	O/E
RQDD-400G-DR4	0 to 70℃	500m	SMF	Siph DFB	Siph PIN

相關的標簽 :

想知道這個產品嗎？

發送信息

留言

如果您對我們的產品感興趣并想了解更多詳細信息，請?jiān)诖颂幜粞裕覀儗⒈M快答復您。

主題 : 400G QSFP-DD DR4 SM MPO12 Optical Transceiver
您的電話
您的郵箱 *
寫你的問題 :

相關產品

400G QSFP28-DD FR4 CWDM4 2km LC Optical Transceiver

400G QSFP-DD FR4 optical transceiver module, support 400Gb/s and up to 2 km transmission on SM fiber, it works in high-speed IDC connection solutions.

400G QSFP-DD DR4 PAM4 1310nm 500M MPO Optical Transceiver

400G QSFP-DD DR4 optical transceiver module, support 400Gb/s and up to 500m transmission on SM fiber, it works in high-speed IDC connection solutions.

400G CFP2 DCO Optical Transceiver Module

400G CFP2 optical transceiver module Used on the system's motherboard Up to2000 km in MAN DWDM application

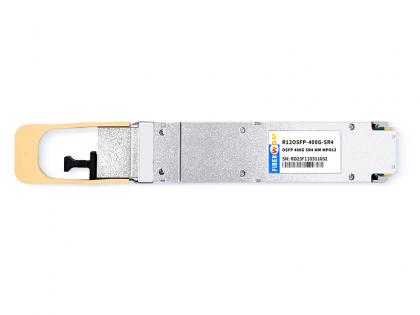

400G OSFP SR4 MM MPO12 Optical Transceiver IB
