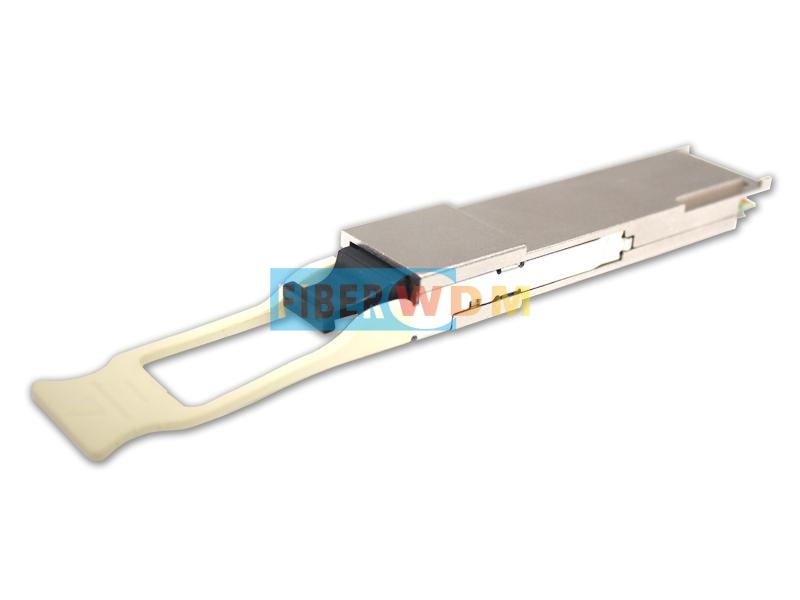

400G QSFP-DD FR4 optical transceiver module, support 400Gb/s and up to 2 km transmission on SM fiber, it works in high-speed IDC connection solutions.

400G CFP2 optical transceiver module Used on the system's motherboard Up to2000 km in MAN DWDM application

Features OSFP Serial Optical Interface 4x100G PAM4 retimed 400GAUI-4 electrical interface Active Optical cable 4 channel VCSEL arrays and 4 channels PIN photo detector arrays Maximum link length of 60m on OM3 or 100m on OM4 OSFP MSA Compliant Hot Pluggable OSFP form factor Compliant to OSFP Module Specification Rev 5.0 Compliant with CMIS 5.2 Support Protocol Compliant with IEEE 802.3db Compliant to IEEE 802.3ck Low Power Consumption Less than 8W in temperature range of 0 to 70℃ Applications 400GBASE-SR4 400G Ethernet Data center

Features Form Factor: Hot-pluggable OSFP form factor Data Rate: Aggregate data rate of 425 Gb/s and Breakout data rate of 106.25 Gb/s Optical Interface: Compliant to 400GBASE-DR4 and 4x100GBASE-DR Transmitter: EML 1310nm transmitter Electrical Interface: Compliant to 400GAUI-4 and 4x100GAUI-1 Receiver: PIN and TIA array on the receiver side Management Interface: I2C management interface Reach: Up to 500m over MPO-12/APC single mode fiber Power consumption: 9 W max Operating case temperature: 0 ~ 70 ℃ Power Supply: Single 3.3V power supply Compliance Form Factor: OSFP MSA Optical: IEEE802.3bs Electrical: IEEE802.3ck Firmware: CMIS Environment: RoHS Stability: GR-468-CORE Applications 400Gb/s Ethernet Data Center InfiniBand

Features QSFP-DD Serial Optical Interface 8x50G PAM4 retimed 400GAUI-8 electrical interface MPO-12 connector with 8° angled end-face Up to 500m on SMF with FEC QSFP-DD MSA Compliant Hot Pluggable QSFP-DD form factor Compliant with CMIS5.2 Support Protocol IEE802.3.bs 400GBASE-DR4 Specification compliant Low Power Consumption Less than 10.5W in temperature range of 0 to 70℃ Applications 400Gb/s Ethernet Data Center InfiniBand interconnects

Applications 400G BASE-FR4 Ethernet Data Center Interconnect InfiniBand Interconnect Enterprise Networking Features Compliant to QSFP-DD MSA 4 CWDM   lanes MUX/DEMUX design 100G Lambda MSA 400G-FR4 Specification compliant Maximum power consumption 10W

Features IEEE 802.3bs Specification compliant QSFP-DD MSA compliant 4x106.25 Gbps PAM4 optical interface 8x53.125 Gbps PAM4 electrical interface I2C interface with integrated DDM Up to 2km transmission distance on single mode fiber (SMF) with FEC up ply voltage: 3.3 V Maximum power consumption: 12 W MTP/MPO-12 connector Operating case temperature: 0 to 70 °C RoHS compliant Applications 400G Ethernet Datacenter enterprise networking

25G SFP28 DWDM optical transceiver module, support 25Gb/s and up to 10 km transmission, it works in high-speed IDC connection solutions, 5G network front-haul solution, and so on.
