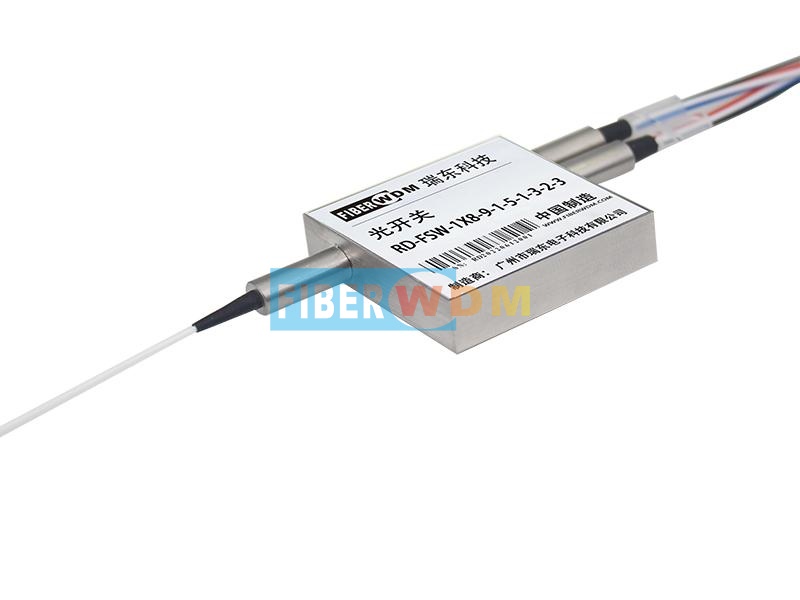

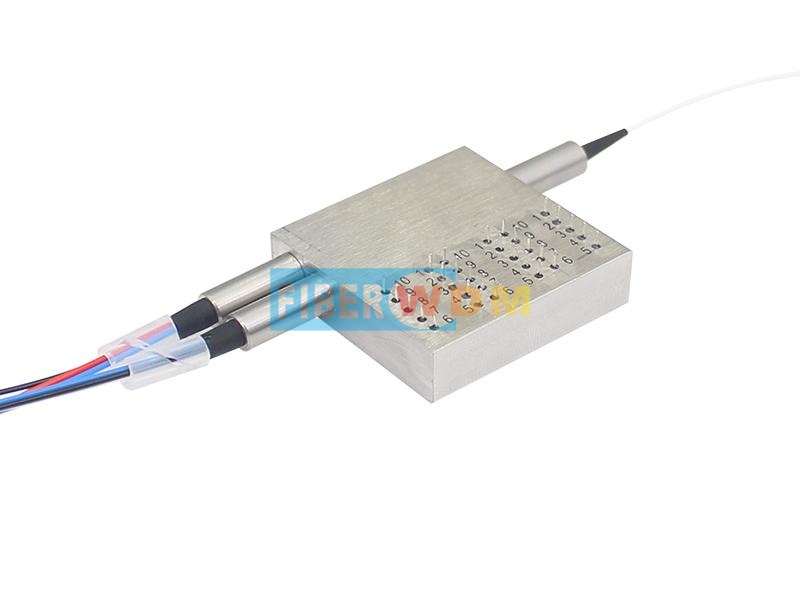

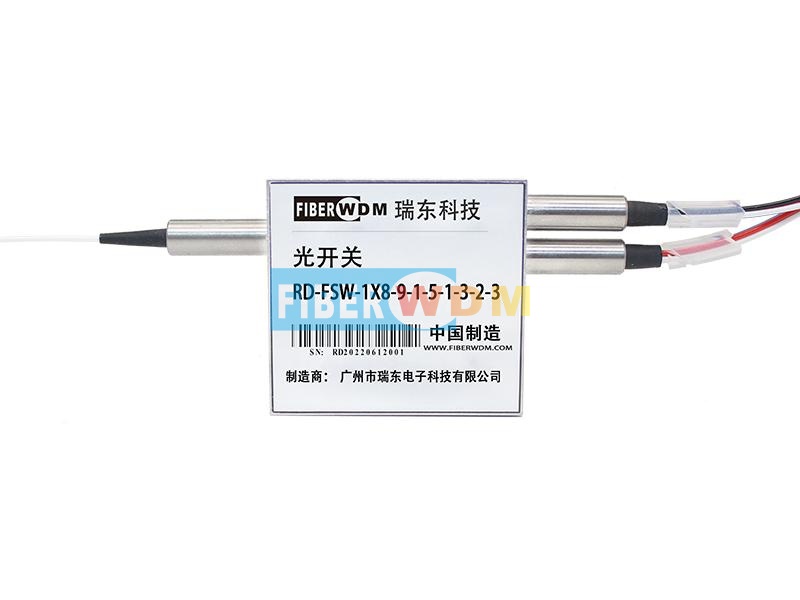

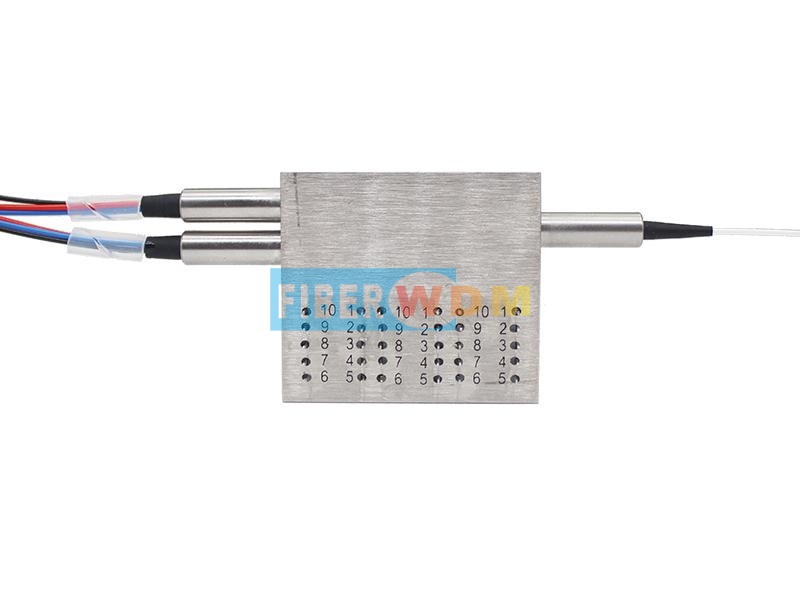

1x8 Mechanical Optical Switch 1X8機械光開關器件
The Series 1x8 fiber optic switch connects optical channels by redirecting an in- coming optical signal into a selected output fiber. This is achieved by using a patent pending op to-mechanical configuration activated via an electrical control signal. Latching operation preserves the selected optical path after the drive signal has been removed. The switch has integrated electrical position sensors, and the new material based advanced design significantly reduces moving part position sensitivity, offering unprecedented high stability as well as an unmatched low cost. Electronic driver is available for this series of switches.
Specifications
|
Operating Wavelength |
1260~1620nm(SM) 850nm(MM) |
Insertion Loss |
≤1.2dB |
|
Wavelength Dependent Loss |
≤0.35dB |
Polarization Dependent Loss |
≤0.05dB |
|
Temperature Dependent Loss |
≤0.25dB |
Return Loss |
SM≥50dB MM≥30dB |
|
Cross Talk |
SM≥55dB MM≥35dB |
Switch Time |
≤8ms |
|
Repeatability |
≤±0.02dB |
Durability |
≥107 times |
|
Operating Voltage |
3 or 5V |
Switch Type |
Non-Latching/Latching |
|
Operating Temperature |
－20~＋70℃ |
Storage Temperature |
－40~＋85℃ |
|
Optical Power |
≤500mW |
Dimension |
35.0L×35.0W×9H mm |
Pin Configurations
Latching Type:
|
Type |
Optical Route |
Relay |
Electric Drive |
State Sensor |
||||||
|
1×8 |
Pin 1 |
Pin 5 |
Pin 6 |
Pin 10 |
Pin 2-3 |
Pin 3-4 |
Pin 7-8 |
Pin 8-9 |
||
|
Latching |
Input- Port 1(Black) |
Relay1 |
-- |
-- |
GND |
V＋ |
Close |
Open |
Open |
Close |
|
Relay2 |
-- |
-- |
GND |
V＋ |
Close |
Open |
Open |
Close |
||
|
Relay3 |
V＋ |
GND |
-- |
-- |
Open |
Close |
Close |
Open |
||
|
Input- Port 2 (red) |
Relay1 |
-- |
-- |
GND |
V＋ |
Close |
Open |
Open |
Close |
|
|
Relay2 |
V＋ |
GND |
-- |
-- |
Open |
Close |
Close |
Open |
||
|
Relay3 |
-- |
-- |
GND |
V＋ |
Close |
Open |
Open |
Close |
||
|
Input- Port 3(blue) |
Relay1 |
-- |
-- |
GND |
V＋ |
Close |
Open |
Open |
Close |
|
|
Relay2 |
-- |
-- |
GND |
V＋ |
Close |
Open |
Open |
Close |
||
|
Relay3 |
-- |
-- |
GND |
V＋ |
Close |
Open |
Open |
Close |
||
|
Input- Port 4(White) |
Relay1 |
-- |
-- |
GND |
V＋ |
Close |
Open |
Open |
Close |
|
|
Relay2 |
V＋ |
GND |
-- |
-- |
Open |
Close |
Close |
Open |
||
|
Relay3 |
V＋ |
GND |
-- |
-- |
Open |
Close |
Close |
Open |
||
|
Input- Port5(Black) |
Relay1 |
V＋ |
GND |
-- |
-- |
Open |
Close |
Close |
Open |
|
|
Relay2 |
-- |
-- |
GND |
V＋ |
Close |
Open |
Open |
Close |
||
|
Relay3 |
V＋ |
GND |
-- |
-- |
Open |
Close |
Close |
Open |
||
|
Input- Port6 (red) |
Relay1 |
V＋ |
GND |
-- |
-- |
Open |
Close |
Close |
Open |
|
|
Relay2 |
V＋ |
GND |
-- |
-- |
Open |
Close |
Close |
Open |
||
|
Relay3 |
-- |
-- |
GND |
V＋ |
Close |
Open |
Open |
Close |
||
|
Input- Port7(blue) |
Relay1 |
V＋ |
GND |
-- |
-- |
Open |
Close |
Close |
Open |
|
|
Relay2 |
-- |
-- |
GND |
V＋ |
Close |
Open |
Open |
Close |
||
|
Relay3 |
-- |
-- |
GND |
V＋ |
Close |
Open |
Open |
Close |
||
|
Input- Port8(White) |
Relay1 |
V＋ |
GND |
-- |
-- |
Open |
Close |
Close |
Open |
|
|
Relay2 |
V＋ |
GND |
-- |
-- |
Open |
Close |
Close |
Open |
||
|
Relay3 |
V＋ |
GND |
-- |
-- |
Open |
Close |
Close |
Open |
||
Non-Latching Type:
|
Type |
Optical Route |
Relay |
Electric Drive |
State Sensor |
||||||
|
1×8 |
Pin 1 |
Pin 5 |
Pin 6 |
Pin 10 |
Pin 2-3 |
Pin 3-4 |
Pin 7-8 |
Pin 8-9 |
||
|
Non- Latching |
Input- Port 1(Black) |
Relay1 |
-- |
-- |
-- |
-- |
Close |
Open |
Open |
Close |
|
Relay2 |
-- |
-- |
-- |
-- |
Close |
Open |
Open |
Close |
||
|
Relay3 |
V＋ |
-- |
-- |
GND |
Open |
Close |
Close |
Open |
||
|
Input- Port 2 (red) |
Relay1 |
-- |
-- |
-- |
-- |
Close |
Open |
Open |
Close |
|
|
Relay2 |
V＋ |
-- |
-- |
GND |
Open |
Close |
Close |
Open |
||
|
Relay3 |
-- |
-- |
-- |
-- |
Close |
Open |
Open |
Close |
||
|
Input- Port 3(blue) |
Relay1 |
-- |
-- |
-- |
-- |
Close |
Open |
Open |
Close |
|
|
Relay2 |
-- |
-- |
-- |
-- |
Close |
Open |
Open |
Close |
||
|
Relay3 |
-- |
-- |
-- |
-- |
Close |
Open |
Open |
Close |
||
|
Input- Port 4(White) |
Relay1 |
-- |
-- |
-- |
-- |
Close |
Open |
Open |
Close |
|
|
Relay2 |
V＋ |
-- |
-- |
GND |
Open |
Close |
Close |
Open |
||
|
Relay3 |
V＋ |
-- |
-- |
GND |
Open |
Close |
Close |
Open |
||
|
Input- Port5(Black) |
Relay1 |
V＋ |
-- |
-- |
GND |
Open |
Close |
Close |
Open |
|
|
Relay2 |
-- |
-- |
-- |
-- |
Close |
Open |
Open |
Close |
||
|
Relay3 |
V＋ |
-- |
-- |
GND |
Open |
Close |
Close |
Open |
||
|
Input- Port6 (red) |
Relay1 |
V＋ |
-- |
-- |
GND |
Open |
Close |
Close |
Open |
|
|
Relay2 |
V＋ |
-- |
-- |
GND |
Open |
Close |
Close |
Open |
||
|
Relay3 |
-- |
-- |
-- |
-- |
Close |
Open |
Open |
Close |
||
|
Input- Port7(blue) |
Relay1 |
V＋ |
-- |
-- |
GND |
Open |
Close |
Close |
Open |
|
|
Relay2 |
-- |
-- |
-- |
-- |
Close |
Open |
Open |
Close |
||
|
Relay3 |
-- |
-- |
-- |
-- |
Close |
Open |
Open |
Close |
||
|
Input- Port8(White) |
Relay1 |
V＋ |
-- |
-- |
GND |
Open |
Close |
Close |
Open |
|
|
Relay2 |
V＋ |
-- |
-- |
GND |
Open |
Close |
Close |
Open |
||
|
Relay3 |
V＋ |
-- |
-- |
GND |
Open |
Close |
Close |
Open |
||

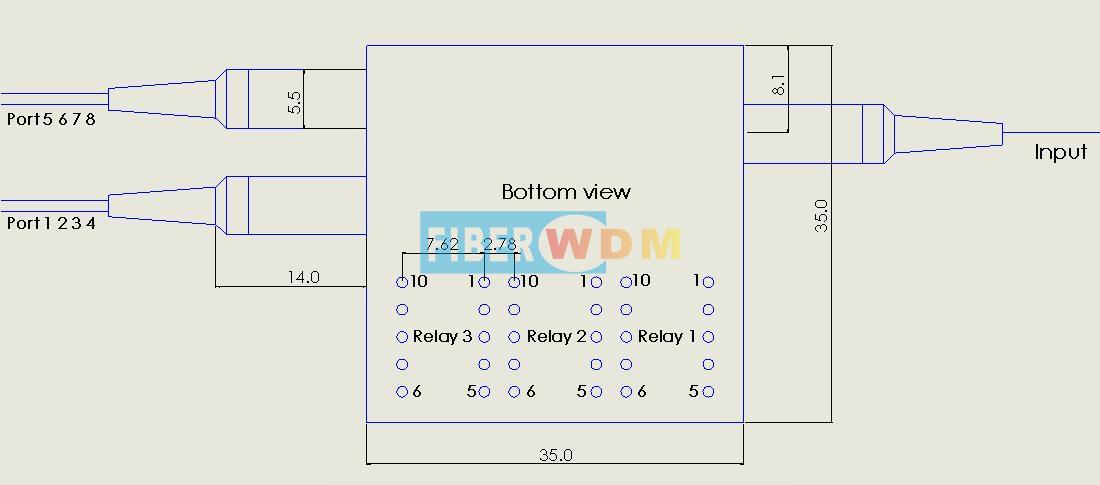

Mechanical Dimensions (Unit:mm)
Optical Route
Ordering Information
|
RD-FSW |
-1x8- |
-Wavelength- |
-Switch Type- |
-Voltage- |
-Fiber Type- |
-Package- |
-Fiberlength- |
-Connector- |
|
|
|
1060＝1 C＋L＝2 1310＝3 1410＝4 1550＝5 650＝6 780＝7 1260-1610=A 1310/1550＝9 850=8 Special＝0 |
Latching＝1 Non-latching＝2 MINI Latching＝3 MINI Non-latching＝4 Special＝0 |
3V=3 5V=5 Special＝0 |
SM28=1 50/125=5 62.5/125=6 Special＝0 |
Bare fiber=1 900um tube=3 Special＝0 |
0.25m=1 0.5m=2 1.0m=3 Special＝0 |
None=1 FC/PC=2 FC/APC=3 SC/PC=4 SC/APC=5 ST/PC=6 LC/PC=7 Duplex LC=8 Special＝0 |
